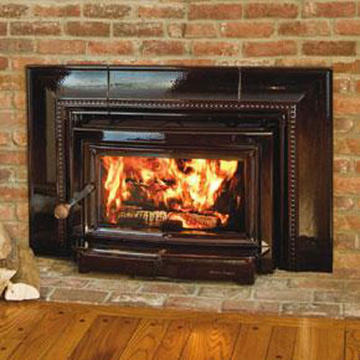

Hearthstone Clydesdale Wood Insert
Transform your fireplace into a heat source with large space performance. The Clydesdale fireplace wood-fired insert produces a combination of both power and beauty. The 2.4 cubic foot firebox produces 60,000 BTUs of heat and can heat up to 2,000 square feet. The thick soapstone panels that line the inside of the firebox give the Clydesdale the thermal mass that separates HearthStone stoves from other products. The combination of cast iron and soapstone will add several hours of heat life to the already strong burn time of up to 10 hours.
New design features
- Solid cast-iron reversible door - Improved door handle and latch - Simplified three-piece surround - Quieter blower system mounted in rubber bushings with easy access speed control. The blower helps spread heat evenly throughout home; blower operates only when insert is at significant heat level. The rheostat controls the blower speed. - Improved heating performance with sealed convective air chamber and better air flow - Easier access to blower for cleaning - Easy access draft test port
- 2-position flue collar and depth-adjusting surrounds - Levelling legs: For optimum placement of the insert after the installation - Mantle shield (optional): Reduces mantle clearances - Surround caps (optional): Adds beauty to the installation or used as a filler for raised firebox installations - Surround extension (optional): 36" H x 59" W (aluminum)
2.4 cubic foot firebox
Holds up to 48 lbs. of wood. The Clydesdale's ample firebox and large front door allows loading logs up to 22" in length easily.
Single air-intake lever/stove control
Responsive control - insert operation is easy, performance more consistent.
Large glass door
The large front door allows an unobstructed view of the entire firebox. Primary, and secondary air combine for dazzling fire viewing on high, or low settings.
Reversible front loading door
Front door easily converts to open from either the left, or right side to meet your specific installation needs.
Non-catalytic combustion system
EPA certified, clean burning, complete combustion provides more heat from less wood, greater efficiency, and cleaner chimney due to reduced smoke and creosote build up.
Removable Baffle and Secondary Air Plenum
Allows more placement options; Insert can be installed in smaller fireplaces because flue connection can be made in the firebox. Clean the flue without moving the insert.
Factory installed variable speed, temperature activated, blower assembly is standard.
Screen Kit (optional)
Allows for open door fire viewing. Enjoy the sounds of your fire too.
Heats up to 2,000 sq. ft.
Burn Time Up to 10 hours
Heat Life Up to 12 hours
Size 60,000 BTU's
EPA Rating 3.2 grams per hour
Efficiency 79% (LHV)
Width (without surround) 31-1/2"
Depth (includes ash lip) 24-1/2"
Depth (minimum behind surround) 12-3/4"
Maximum Log Length 22"
Firebox Capacity 2.4 cubic feet
Flue Exit & Diameter Vertical, or 30 degree rear, 6" flue collar
Convection Blower Factory Installed, Standard
Ash Pan No
Surround Size w/surround extensions 36" H x 59" W
Surround Size 30" H x 47" W
Actual Weight (lbs.) 550
Optional Screen Yes
Mobile Home Certified No
Optional Mantle Shield Kit Yes
Minimum fireplace dimensions
Width at Front 31"
Width at Rear 24"
Height at Front 22-1/25"
Height at Rear 21"
Depth of Lintel 9" (maximum)
Clearances (Combustible Surface)
Top of Insert to Mantle or Top Trim 27"
Top of Insert to Mantle with Shield Kit 11"
Side of Insert to Side Wall 12"
Side of Insert to Side Trim 9"
Minimum Size (US) 39" W x 18 " D
Minimum Size (Canada) 100 cm x 46 cm
