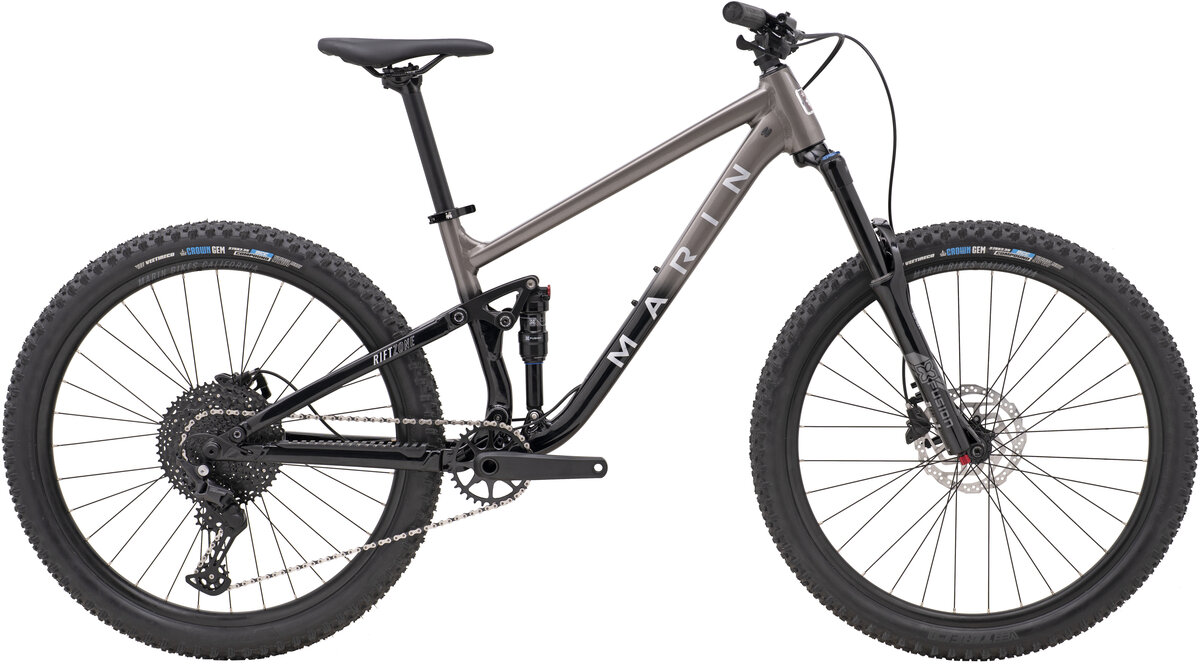

Marin Rift Zone 27.5 1

Marin Rift Zone 27.5 1
  • Color: Gloss Charcoal/Black/Silver
  • Color: Gloss Orange/Blue/Silver
$2,299.00
Please select options

Details

Riding a bike is fun, and having fun on the trail was at the front of our minds when creating the Rift Zone 27.5. Built around our MultiTrac suspension system, the Rift Zone 27.5 is our most playful and fun short travel suspension trail bike to date. Entry level through to high-performance spec, everyone can fall in love with mountain biking over and over again with the Rift Zone 27.5.

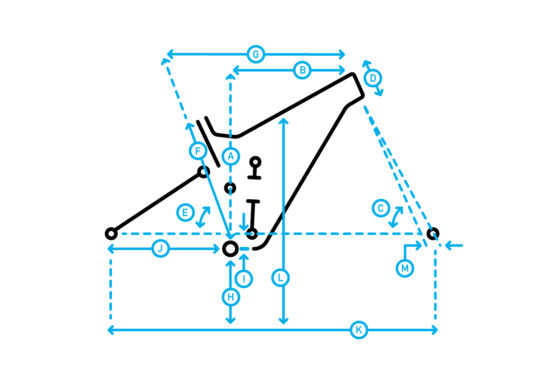

Geometry
All lengths in millimeters

Sizes:
X-SmallSmallMediumLargeX-Large
A- STACK 579 583.6 588.2 597.3 601.9
B- REACH 410 425 445 465 485
C- HEADTUBE ANGLE 66.5° 66.5° 66.5° 66.5° 66.5°
D- HEADTUBE LENGTH 105 110 120 125 130
E- SEATTUBE ANGLE 75° 74.7° 74.5° 74.3° 74.1°
F- SEATTUBE LENGTH 330 380 425 470 515
G- TOPTUBE EFFECTIVE 570.6 586.8 608.1 632.9 651.9
H- BB HEIGHT 338.5 338.5 338.5 338.5 338.5
I- BB DROP 18 18 18 18 18
J- CHAINSTAY 430 430 430 430 430
K- WHEELBASE 1129.4 1146.3 1168.3 1192.3 1214.3
L- STANDOVER HEIGHT 647 665 702 727 768
M- FORK OFFSET 37 37 37 37 37
SEATPOST DIAMETER 30.9 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH 780 780 780 780 780
STEM LENGTH 35 35 35 35 35
CRANK LENGTH 170 170 175 175 175
Sizes:
SizeRider height range
X-Small 5'1" to 5'4"
Small 5'4" to 5'7"
Medium 5'7" to 5'10"
Large 5'10" to 6'1"
X-Large 6'1" to 6'4"

Specs

Frame All New Series 3 6061 Aluminum Frame, 27.5" Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Fork X-Fusion Sweep Boost RC, 27.5", 140mm Travel, Compression and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset
Rear Shock X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
Rims Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Hubs Front: Shimano HF-MT400B, 110x15mm, Centerlock
Rear: Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
Spokes 14g Black Stainless Steel
Axles Closed 9-12 Thru-Axle QR System
Tires Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready
Bottom Bracket External Sealed Cartridge Bearing
Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Shifters Shimano Deore, 11-Speed, SL-5100R
Rear Derailleur Shimano Deore, 11 Speed, SGS
Cassette/Freewheel Sunrace, 11-Speed, 11-51T, ED Black
Chain KMC X-11 Silver and Black
Brakes Front: Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Rear: Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers Shimano BL-MT201
Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Tape/Grips Marin MTN, Closed End
Stem Marin 3D Forged Alloy, 35mm
Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Seatpost Marin Alloy, 30.9mm
Saddle Marin Speed Concept
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Charcoal/Black/Silver / X-Small 843346119698 735948005
Gloss Charcoal/Black/Silver / Small 843346119803 735948001
Gloss Charcoal/Black/Silver / Medium 843346119810 735948002
Gloss Charcoal/Black/Silver / Large 843346119827 735948003
Gloss Charcoal/Black/Silver / X-Large 843346119834 735948004
Gloss Orange/Blue/Silver / X-Small 843346119704 735949005
Gloss Orange/Blue/Silver / Small 843346119841 735949001
Gloss Orange/Blue/Silver / Medium 843346119858 735949002
Gloss Orange/Blue/Silver / Large 843346119865 735949003 210000031483
Gloss Orange/Blue/Silver / X-Large 843346119872 735949004
