Details

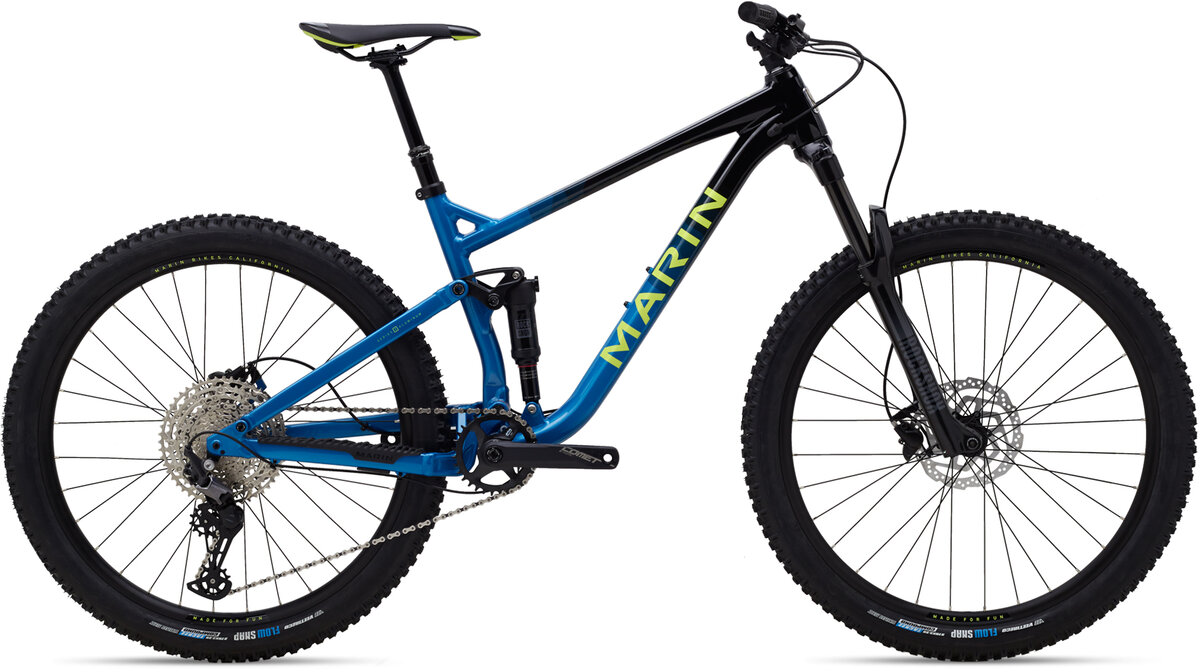

Riding a bike is fun, and having fun on the trail was at the front of our minds when creating the Rift Zone 27.5. Built around our MultiTrac suspension system, the Rift Zone 27.5 is our most playful and fun short travel suspension trail bike to date. Entry level through to high-performance spec, everyone can fall in love with mountain biking over and over again with the Rift Zone 27.5.
Specs
Frame | Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 73mm Threaded BB w/ ISCG05 Tabs |
---|---|
Fork | RockShox Recon Silver RL 27.5", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, Maxle Stealth, 37mm Offset |
Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
Rear Shock | RockShox Deluxe Select R, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210 x 50mm, M8 x 22.2mm Hardware |
Axles |
Front: 110 x 15 thru-axle Rear: 148 x 12mm thru-axle |
Rims/Wheels | Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible |
Hubs | Shimano HB-MT410B, Center Lock, Microspline Freehub Body |
Spokes | 14g Black Stainless Steel |
Tires | Vee Tire Flow Snap 27.5 x 2.35", Tackee Compound, Tubeless Ready |
Crankset | FSA Comet, Modular 1x, MegaTooth Technology, Boost Spacing |
Chainrings | 32T Direct Mount Chainring |
Bottom Bracket | External Sealed Cartridge Bearing |
Chain | KMC X-12 Silver and Black |
Rear Derailleur | Shimano Deore SGS, Shadow Plus, Direct Attachment, 12-Speed |
Cassette/Rear Cogs | Shimano, Deore 12-Speed, 10-51T |
Shifters | Shimano Deore, 12-Speed, SL-7100R |
Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
Tape/Grips | Marin Single Clamp Locking |
Stem | Marin 3D Forged Alloy, 35mm |
Brake Levers | Shimano BR-MT201 Hydraulic Disc |
Brakes | Shimano BR-MT201 Hydraulic Disc, 180mm Rotors |
Pedals | Sold separately |
Saddle | Marin Speed Concept |
Seat Post | TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Gloss Black/Blue/Yellow / Large | 843346113504 | 733272003 | 210000028668 |
Gloss Black/Blue/Yellow / X-Large | 843346113511 | 733272004 | 210000028303 |
