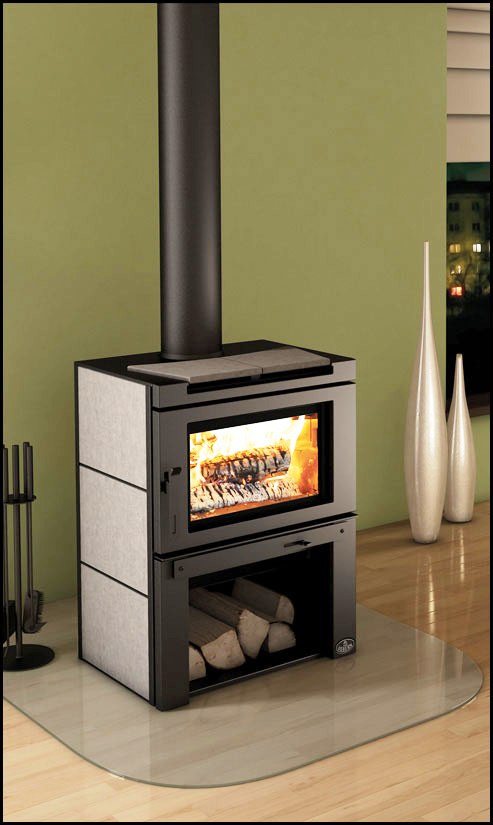

Osburn Matrix Wood Stove

The Matrix wood stove uses the same engine as the proven Osburn 2000. However, its clean and modern look is sure to bring a European touch to your room. The top of the stove is made of cast iron with two rich pieces of soapstone, which remind us of the renowned Finnish fireplaces. Optional soapstone side shields are also available. Logs can be conveniently placed underneath the large firebox, making the Matrix a practical and elegant heating machine.

Features:

Model # : OB02020
High-efficiency stove EPA approved
Recommended Heating Area (sq. ft.) : 750 - 2,100
Blower Included
Ultra-quiet crossflow blower with variable speed control included (CFM) : 130
Color : Metallic black
Model : Pedestal
Easy-to-access ash drawer
Glass air-wash system
Steel thickness (top) : 5/16"
Optimum efficiency : 77.2 %
Emissions (grams/hour) : 3.89 g/h
Baffle : High heat-resistant C-cast
Firebox lined with refractory bricks for better heat distribution
Stainless-steel secondary-air system aid gas combustion
Recommended chimney diameter : 6"
May qualify for some government incentives.
Tested or/and listed as per applicable standards by : Intertek

Specifications:


Firebox dimensions (Depth) 16 1/2"

Firebox dimensions (Width) 21"

Firebox dimensions (Height) 12"

Maximum log length 20"

Door opening dimensions (Width) 17 1/2"

Door opening dimensions (Height) 8 3/4"

Type of Door Simple, glass with cast iron frame

Glass Surface 19 5/8" X 11 7/8"

Maximum output - EPA test wood 32,200 BTU/h

Maximum output - seasoned cord wood 75,000 BTU/h

Steel thickness (body) 3/16"

Weight 535 lb (243 kg)

Firebox volume (cu. ft.) 2.1

Glass Type Ceramic glass

Depth - Overall 25 5/8"

Height - Overall 36 7/8"

Width - Overall 27 1/8"

Centre line of flue outlet to the back 6 3/8"

Centre line of flue outlet to the side 13 1/2"

Canadian Standard (emissions) CSA B415.1-10

USA standard (emissions) EPA Method 28 (40 CFR Part 60)

Canadian Standard (safety) ULC S627

USA standard (safety) UL 737, UL 1482

Type of Fuel Wood

Type of Chimney (°F) 2100

Minimum chimney height (feet) 12

Recommended Heating Area (sq. ft.) 750 - 2,100

Steel thickness (top) 5/16"

Optimum efficiency 77.2 %

Emissions (grams/hour) 3.89 g/h

Baffle High heat-resistant C-cast

Recommended chimney diameter 6"

Warranty Limited lifetime

Tested or/and listed as per applicable standards by Intertek
