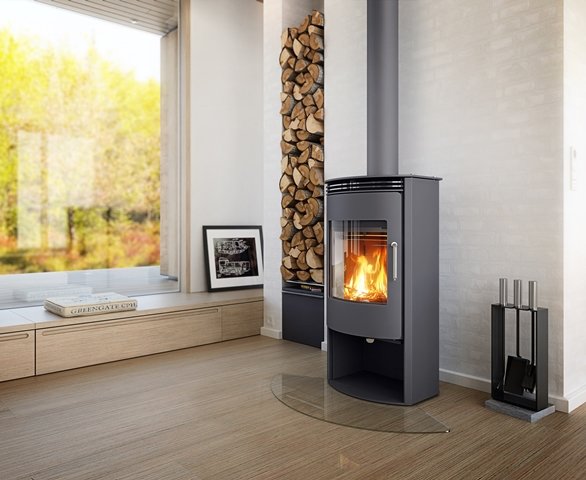

The RAIS Gabo is a new-generation stove that embodies a unique, clean and simple design that is easy to use. Designed without an ash pan and shaker grate, RAIS Gabo has a totally-sealed firebox that ensures optimal combustion control.
This stove can be enhanced with a turntable, a flexible solution that adds dynamism to any living space and allows for a clear view of the fire and its flames from anywhere in the room.
The convection grate on the RAIS Gabo provides an art deco touch and comes in matching black, gray, or stainless steel. The stove can be further accessorized with a heat-retaining soapstone top plate that provides a contrast to the stove body and continues to emanate heat long after the fire is burnt to mere embers.
Heat BTu output 27 kBTU
Heat range (min-max) 12-27 kBTU
Heating capacity (25-68 degrees F) 970 sq. ft
Stove Exterior 21 1/8 - 18 1/8 - 39 5/8 "
Firebox Interior 14 3/4 - 9 5/8 - 14 1/2 "
Log Length 14 3/4 "
Pipe Diameter 6 "
Distance from center of top exit to the back edge of the top plate 8 "
Distance from floor to center of top exit 39 5/8 "
Center pipe in top to back edge of stove 5 "
Floor to center of outside air connector 4 3/4 "
Distance to Flammable Material
Distance to combustible side wall 11 "
Distance to combustible back wall 6 "
Corner Clearance to Combustible 4 "
Stove 309 lb
Top Plate 77 lb
