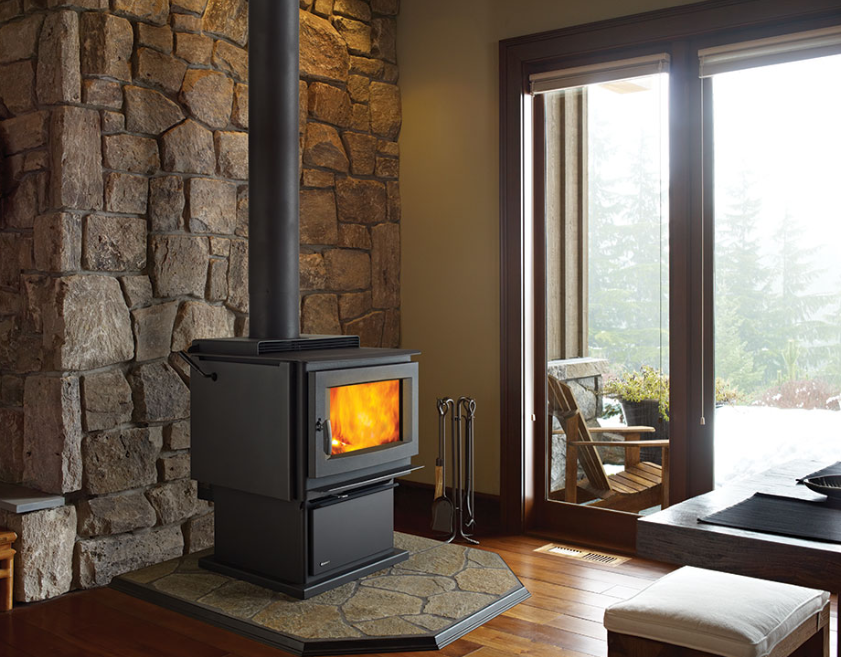

Regency Pro-Series F5200

Extra Large Hybrid Catalytic Wood Stove
The F5200 wood stove lets you load an impressive 90 pounds of fuel. Its clean, classic design provides the perfect backdrop to the wide view cast door giving you a large fire view that will take your breath away!

The Regency Pro-Series F5200 extra-large hybrid wood burning freestanding stove is one of the original Regency stoves that feature Eco-Boost triple burn technology. When the included thermometer enters the "Active" range, use the bypass control to engage the catalyst; and watch your fire burn longer and more consistent, while still being environmentally friendly.

Opening the door a full 170 degrees, lets you load up to 90 lbs. of 22" logs (front to back & side to side) at one time and the discreet ash lip will help to keep the floor in front of your new stove clean. You will be able to fit this unit anywhere in your home, using the rear heat deflector (included) to give you the closest clearances in the industry.

Wood Stove Key Features:
Load wood front to back or side to side
Large fire viewing area, with heat radiating ceramic glass
Heavy duty cast hinges that will never bend or break
Solid forged steel adjustable cam lock ensures a tight door seal over time
Front mounted air adjustment & side mounted catalytic bypass
Easy-to-read catalytic thermometer helps your stove reach maximum burn times & efficiency
High performance brick-lined firebox reflects heat
Non-obtrusive air wash curtain keeps glass clean
Welded ash lip will never bend or break
Rear heat deflector allowing for closer clearances
Mobile home and alcove approved
170° opening door for easy loading
Heavy duty 3/16 in. steel firebox
Triple-burn technology creates longer and more complete burns
Backed by the industry’s most comprehensive Limited Lifetime Warranty
10-year, 100% coverage on original catalyst

Energy Specifications
Maximum BTUs/hr 95,000
EPA-Tested BTUs/hr 36,398
Higher Heating Value Efficiency (HHV)info 80%
Lower Heating Value Efficiency (LHV)info 86%
Energy Notes: EPA BTU, HHV & LHV based on cribwood testing
General Specifications
Product Size Extra Large
Log Size 22"
Burn Time up to 30 hrs
Firebox Capacity 4.4 cu. ft.
Emissions (gms/hr) 0.84
View Area 213 sq. in.
Room Size Large
Vent Type Double Wall Pipe
Vent Size (Air Intake) N/A
Vent Size (Exhaust) 8"
Unit Dimensions
Width (front) 29 in.
Height 39 3/4 in.
Depth 31 3/16 in.
