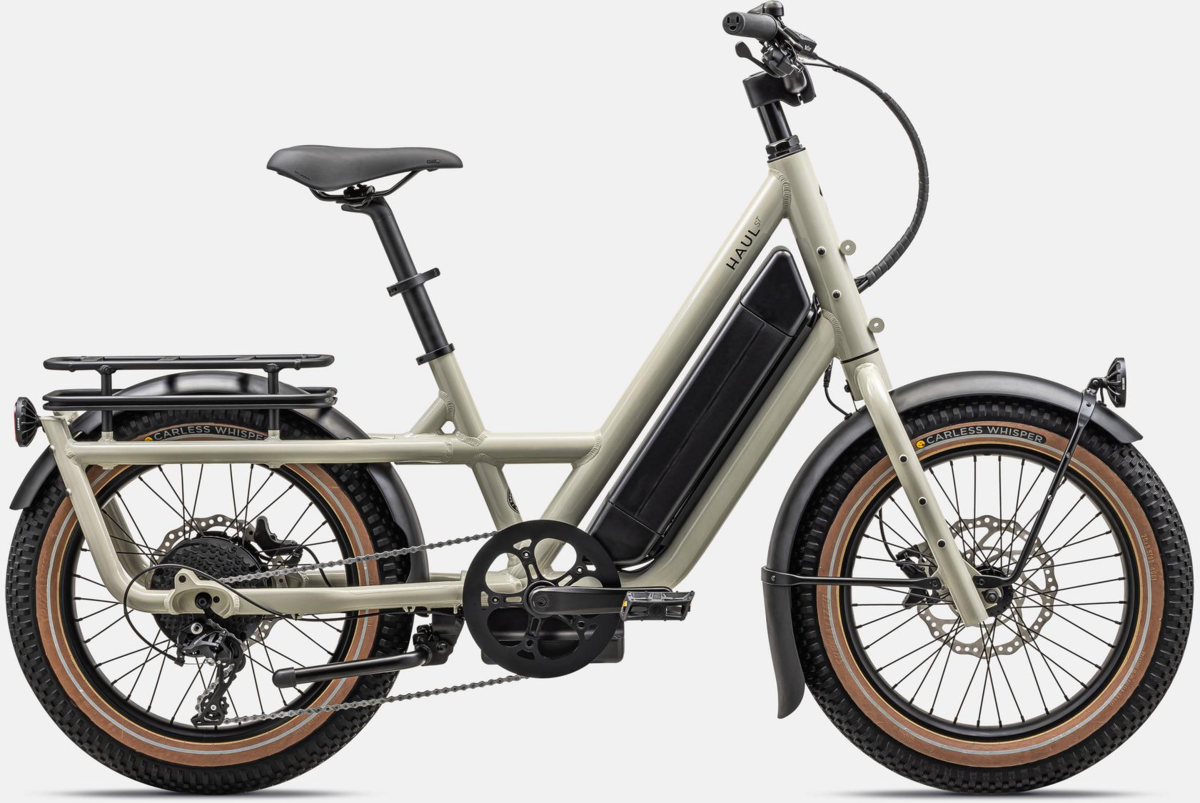

Specialized Haul ST

Specialized Haul ST
  • Color: Gloss White Mountains
$3,600.00
Color: Gloss White Mountains
Size: One Size
Wheel Size: 20-inch
Please select options Unavailable

Details

Whatever you’re into, get more into it with the Specialized Globe Haul ST. It’s down for the ride. With 419 pounds of cargo capacity (rider included) up to 100 km at a time, this fully customizable electric bike has the speed, power, range, and stability to get you wherever you need to go with whatever you need. With a grip of mounting opportunities you can bring the kids, a kayak, and stop on the way home for groceries. Don’t sweat it getting dark on you either. Integrated front and rear lights will have you dialed from dawn patrol to golden hour.

POWERED UP. The rear hub motor will have you zooming up hills with all your gear. Need a little extra boost to make it through an intersection safely? Crank up the power to get up to top speed quick, then dial it back and hit the pedals for max range.

INCLUSIVE. All bodies, all fun. The unique single size frame fits riders comfortably all over the size spectrum. Using the Retül database, the adjustable fit was designed to be perfect for you. Make it longer here, shorter there, and you're ready to ride comfortably. The low center of gravity means it’s easy to handle for a newcomer or a pro, loaded up or loaded down.

READY TO ROLL. The Globe Haul ST is ready to rock straight out of the box with an included MIK-compatible rear rack, full coverage fenders, integrated lights and center stand. D.I.Y. yourself into gear-nirvana, with a whole host of Globe accessories compatible with the auxiliary mounting points… It’s your Globe, we’re just living in it.

- 500w rear hub motor delivers enough power to get you and all your gear up steep hills and all the way across town at top speed. The 772wh battery provides up to 100 km of range at the lower levels of pedal assist.

- 419 lbs carrying capacity, rider included.

- All rear racks have been updated to 132 lbs (60kg) max weight capacity - even those labeled ‘40kg’. So get Haulin’.

- Unique, single-size frame fits riders from around 4’5” all the way up to 6'4". The telescoping seatpost has over 13 inches of adjustability, and the quill stem can extend almost six inches. It provides a comfortable ride to almost everyone measured in our Retül database.

- 20” diameter wheels help keep weight low to the ground for improved stability. The extra wide 3.5” Carless Whisper tires provide comfort and traction on any terrain and feature a 3-ply casing for superior flat protection.

- A lifetime warranty on the frame, and two year e-system warranty will keep your bases covered. With the Specialized network of service centers and superior customer service, you’re never on your own.

Sizes:
One Size
Crank Length 160mm
Handlebar Width 700mm
Stem Length 45mm
Saddle Width 200mm
Seatpost Length 585mm
Reach 345mm
Head-Tube Length 292mm
Head-Tube Angle 70°
B-B Height 285mm
B-B Drop 5mm
Trail 47mm
Fork Length (full) 372mm
Fork Rake/Offset 55mm
Front-Center 624mm
Chain-Stay Length 465mm
Wheelbase 1089mm
Top-Tube Length (horizontal) 600mm
Bike Stand-Over Height 511mm
Seat-Tube Length 366mm
Seat-Tube Angle 68°
Stack 610mm
Seat height - Max 852mm
Seat height - Min 517mm
Bar height form ground - Max 1192mm
Bar height from ground - Min 1051mm

WARNING: This product can expose you to chemicals, including Lead and BPA, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Frame Haul ST Premium Aluminum, Post mount disc brake, fender/rack mounts
Fork Globe Steel, Post mount disc brake, fender/rack mounts
Rims 20'', double-wall alloy, 50X20mm, 36h
Hubs Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h
Spokes Stainless, 13g/2.3mm
Tires Carless Whisper Reflect, Tan Sidewall, 20X3.5, Reinforced
Bottom Bracket Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor
Crankset Forged alloy arm, alloy chainring guard, 160mm
Chainrings 50T
Shifters microSHIFT Advent, 9-speed
Rear Derailleur microSHIFT, short cage, 9-speed
Cassette/Freewheel SunRace, 9-Speed, 11-36t
Chain KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™
Brakes Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor
Handlebars Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width
Tape/Grips Globe closed end slip on type, 155mm
Stem Globe, cargo 1.5X150mm quill stem
Seatpost Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm
Saddle Specialized Body Geometry Comfort Gel
Pedals Specialized Flat pedal
Accessories & Extras Headlight: Globe Cargo Drive, 1500 Lumen, remote switch, multiple modes., Taillight: Globe Cargo Drive, 50 Lumen Rack Globe, Short Tail, MIK HD interface, rail system, Fenders: Globe Cargo fenders, w/headlight mount, Kickstand: Globe, Short Tail, center mount, Bell: Brass bell
Motor Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h
Battery Globe external battery, 772Wh, UL 2271 certified, IPX7
Controller/Display Globe handlebar remote HMI, State of charge, Ride Mode display, USB plug, BLE
Charger Globe charger, 48V System w/ Globe system charger plug, AC power cord included

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Gloss White Mountains / One Size / 20-inch 196625165184 91025-8500 210000032965
