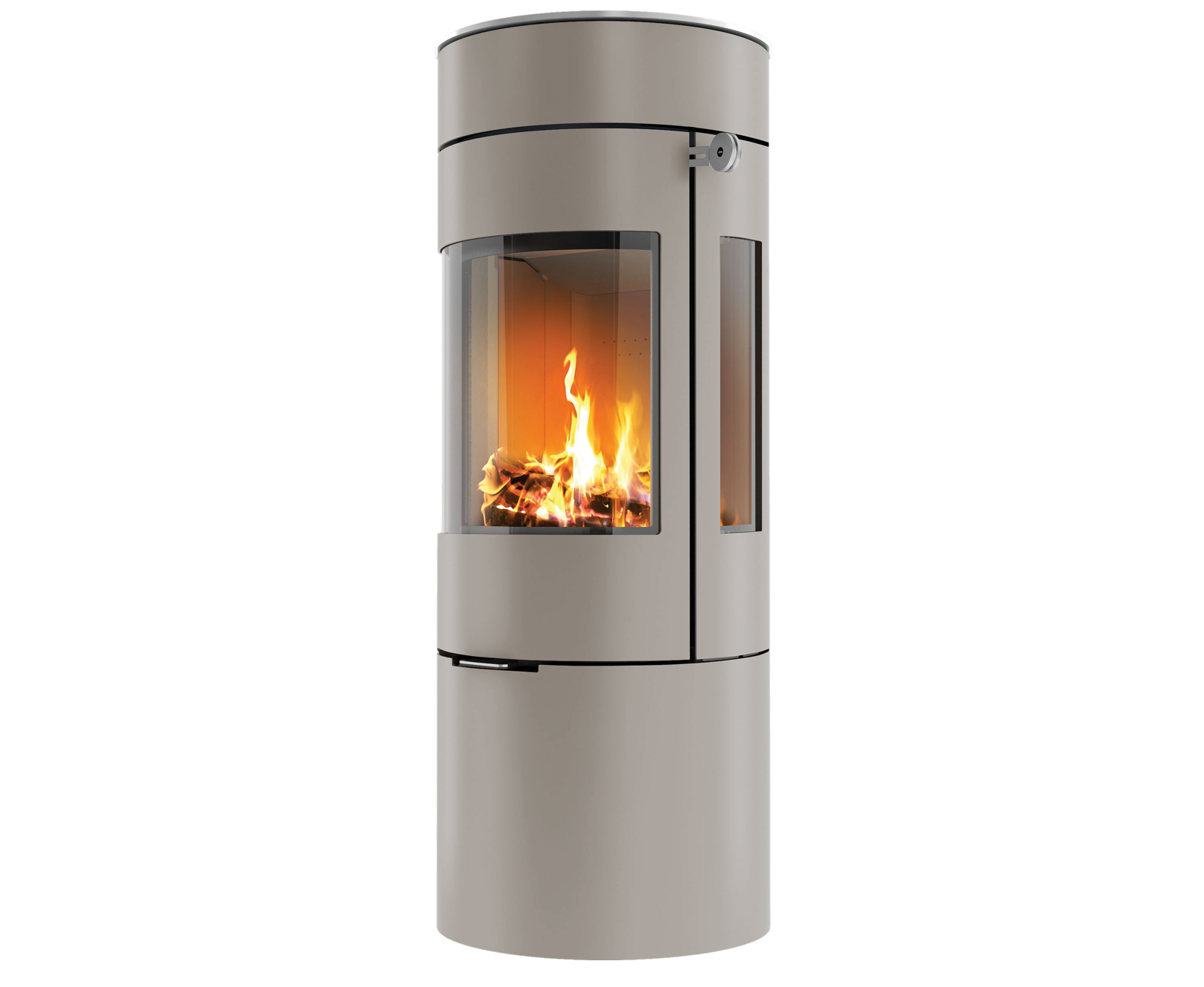

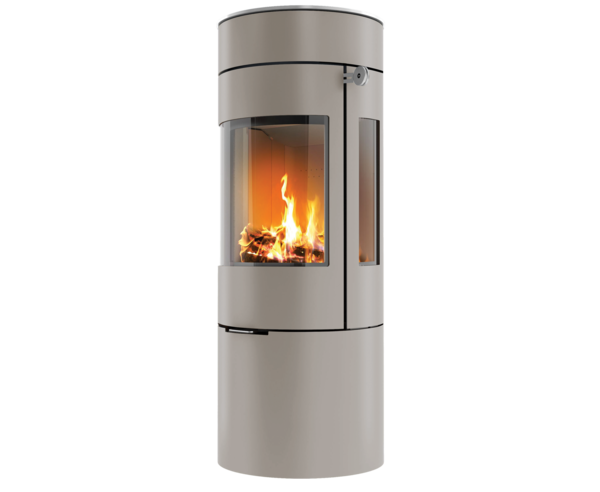

Rais Viva L 120 Wood Stove

Rais Viva L 120 Wood Stove

Details

The cylindrical Viva L 120 is a true proponent of the elegant and minimalist: it is simple, smooth and beautiful. This unit by Rais is unique in the fact that the smoke pipe can exit from the back of the stove, unlike most other contemporary tall cylindrical stoves today that must vent through the top. A pane of massive proportions and a large combustion chamber bring even more pleasure from the fire – and are also very easy to install.

The new, redesigned "cabinet-style" handle is given a discrete placement at a convenient height.

This taller stove comes standard with a steel door, and wooden handle.

Color options: Black, Platinum, Nickel / Handle options: (Stainless Steel, Leather)

Additional options: Side glass, Top plates: (Stainless Steel, Deep, Soapstone), 360 degree rotating swivel base


Specifications:
Heat BTu output 27 kBTU
Heat range (min-max) 12-27 kBTU
Heating capacity (25-68 degrees F) 1000+ sq. ft
Emissions 1.1 g/hr
Efficiency 78%
Dimensions (W-D-H) Stove Exterior 18.5" - 18.5" - 48"
Firebox Interior 13.5" - 11.5" - 17.5"
Log Length 13"
Pipe Diameter 6 "
Distance from center of top exit to the back edge of the top plate 9.2 "
Distance from floor to center of top exit 41"
Center pipe in top to back edge of stove 9 "
Distance from floor to center of rear exit 38"
Floor to center of outside air connector 4.7 "
Distance to Flammable Material Distance to combustible side wall 21 "
Distance to combustible back wall 12"
Corner Clearance to Combustible 14 "
Weight Stove 220 lb
Top Plate 77 lb
